Volleyball court construction — FIVB-spec indoor & outdoor builds

ChampCourts builds FIVB-compliant volleyball courts across India in four surface systems — outdoor 8-layer acrylic, PP interlocking tiles, indoor BWF/FIVB vinyl, and tournament-grade PU polyurethane. Our courts serve schools, colleges, residential societies, corporate campuses, and competitive academies.

A regulation FIVB volleyball court measures 18 m x 9 m (59 ft x 29.5 ft) with a free zone of 3 m on all sides (5 m for international events). Net height: 2.43 m for men, 2.24 m for women. Ceiling clearance for indoor play: 7 m minimum, 12.5 m for international.

Volleyball surface options

FIVB standards we engineer to

• Court size: 18 m x 9 m (59 x 29.5 ft); free zone 3 m all sides
• Net height: 2.43 m men, 2.24 m women, 2.35 m men’s U19
• Net width: 1 m, length 9.5 - 10 m
• Antennae: 1.80 m tall, 80 cm above net
• Attack line: 3 m from centre line
• Ceiling clearance: 7 m (club), 12.5 m (FIVB international)
• Vertical deformation: >= 23% (FIVB), 30-50% (PU cushioned)
• Lighting: 500 lux training, 1,500 lux competition (FIVB Level 1)

Indoor vs outdoor — which surface for which project

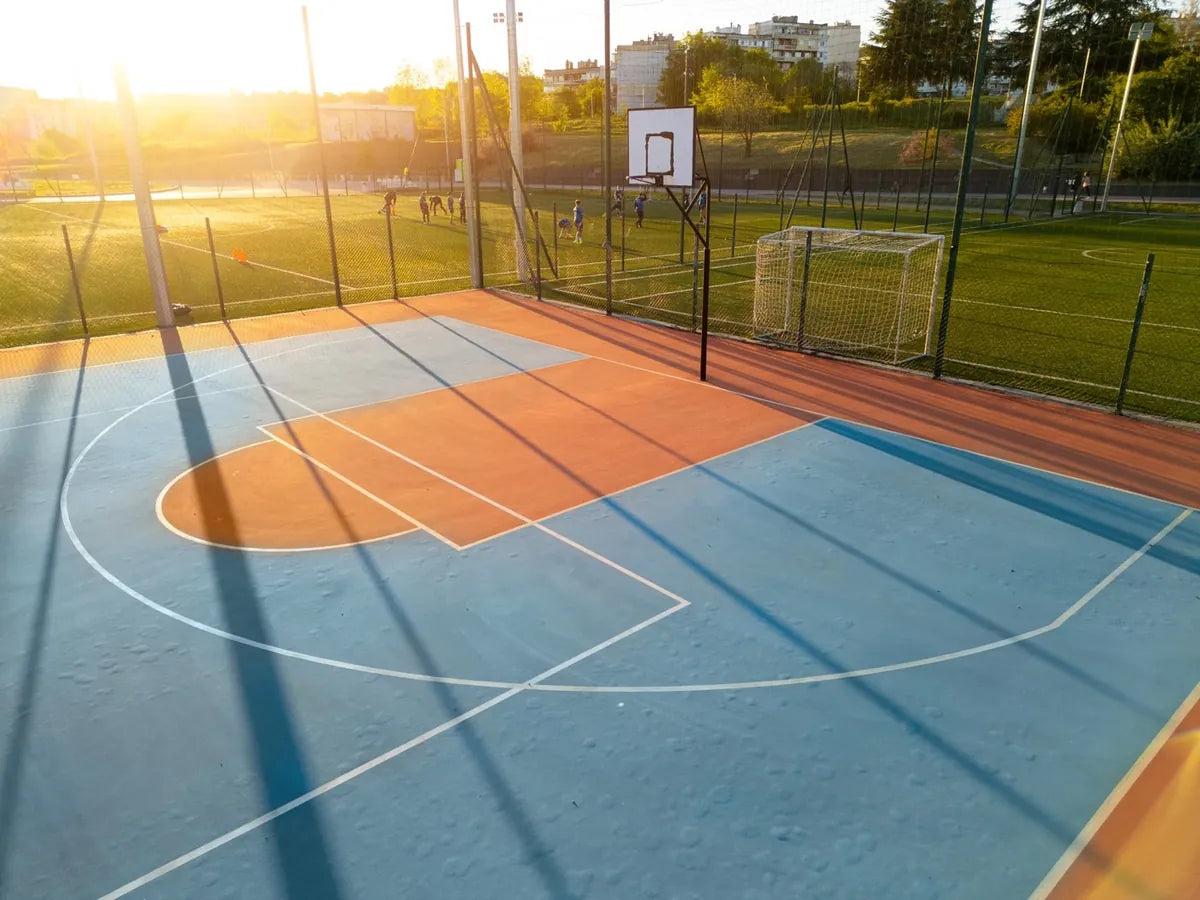

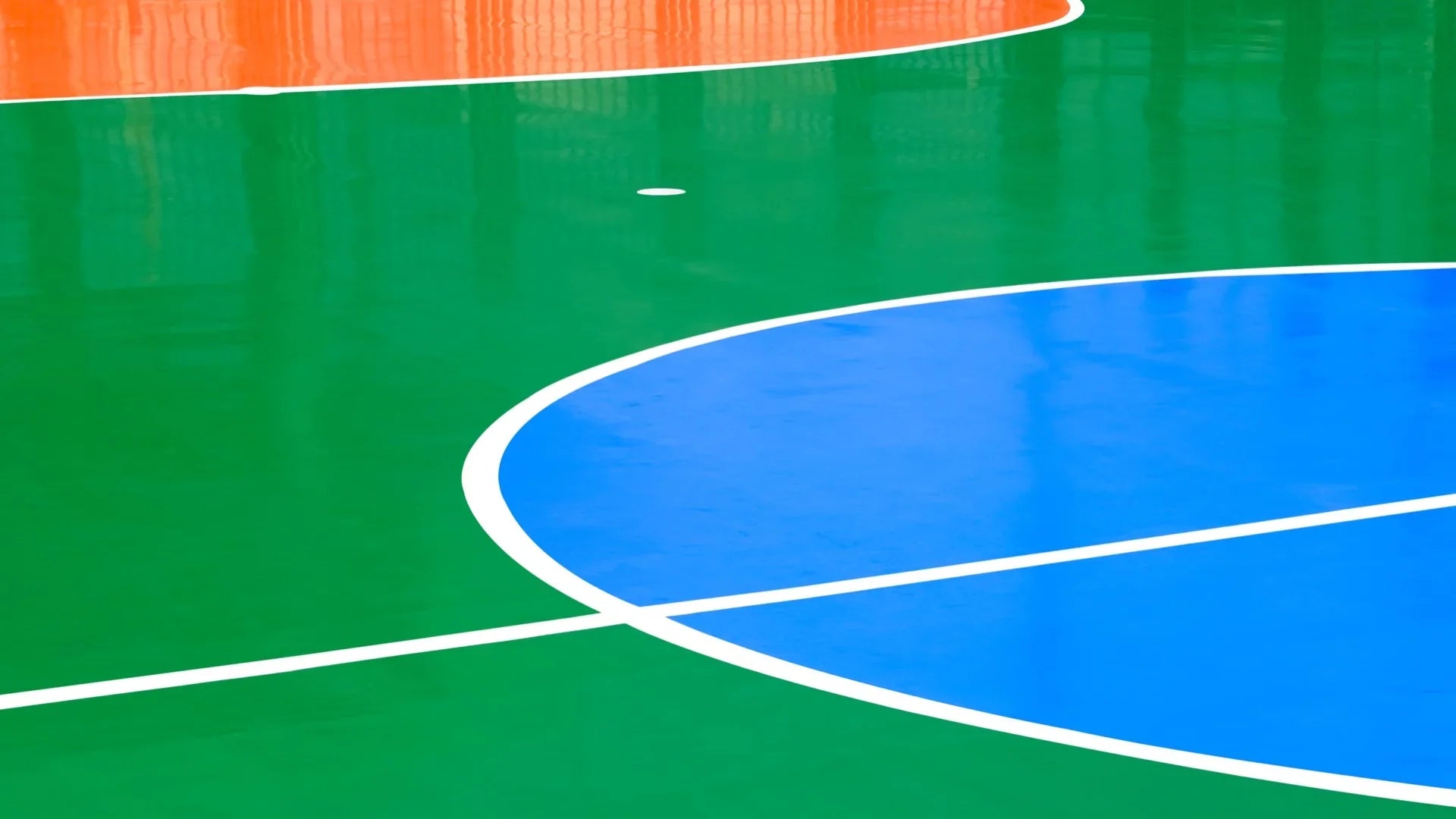

• School outdoor PE court: 8-layer acrylic on PCC — durable, low-maintenance, weather-rated
• College indoor competition: PU polyurethane on engineered sub-floor — FIVB Level 1 ball rebound and shock absorption

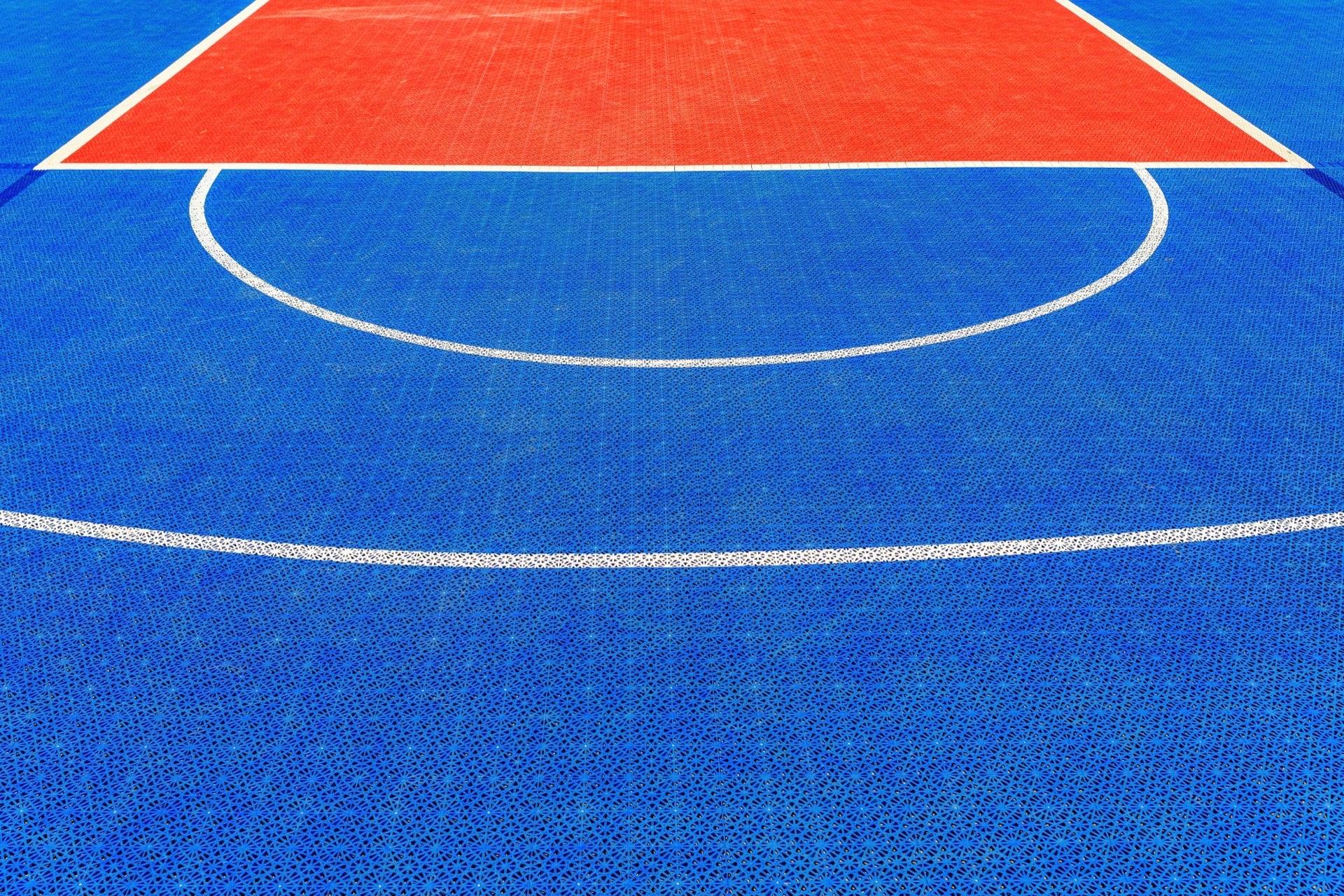

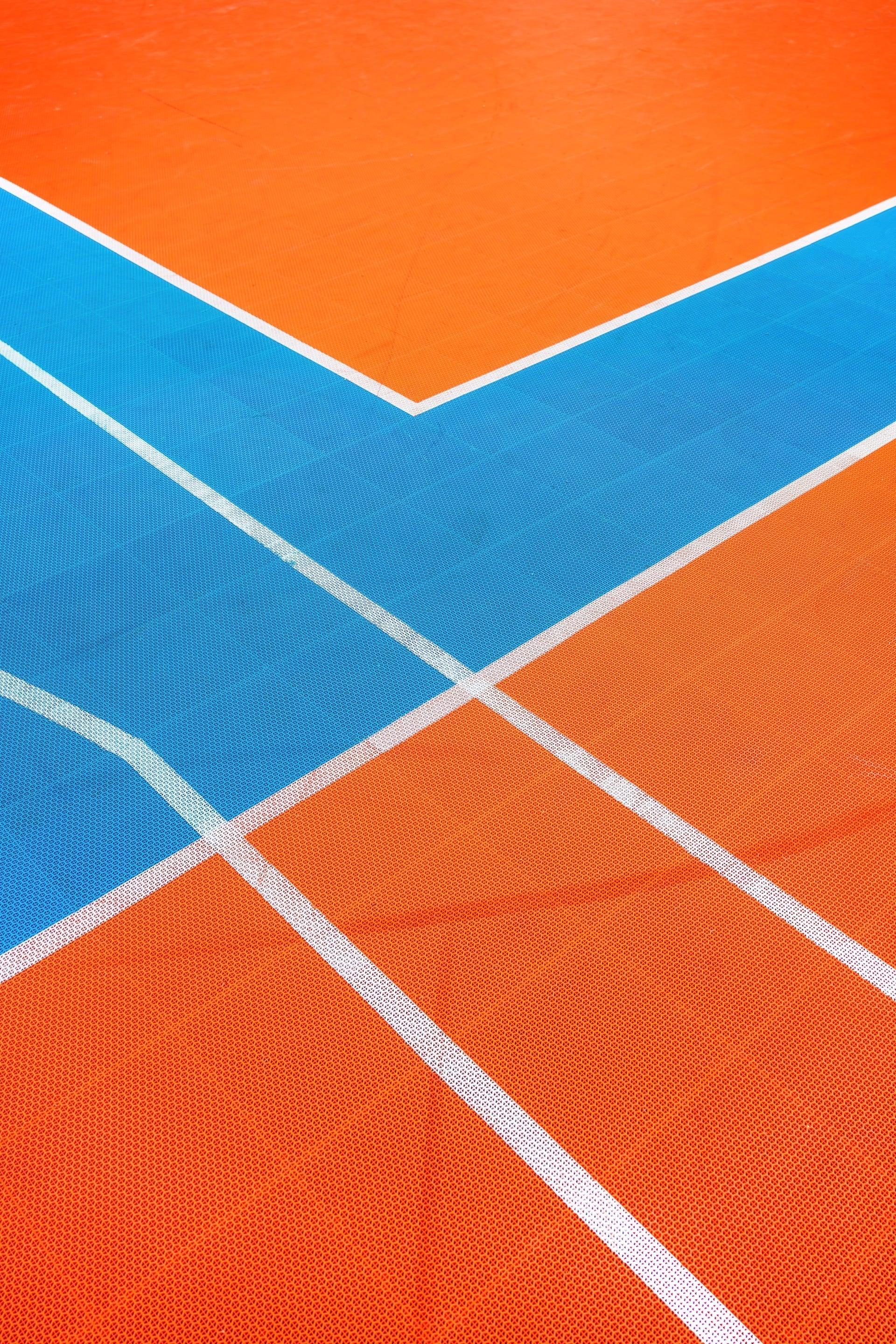

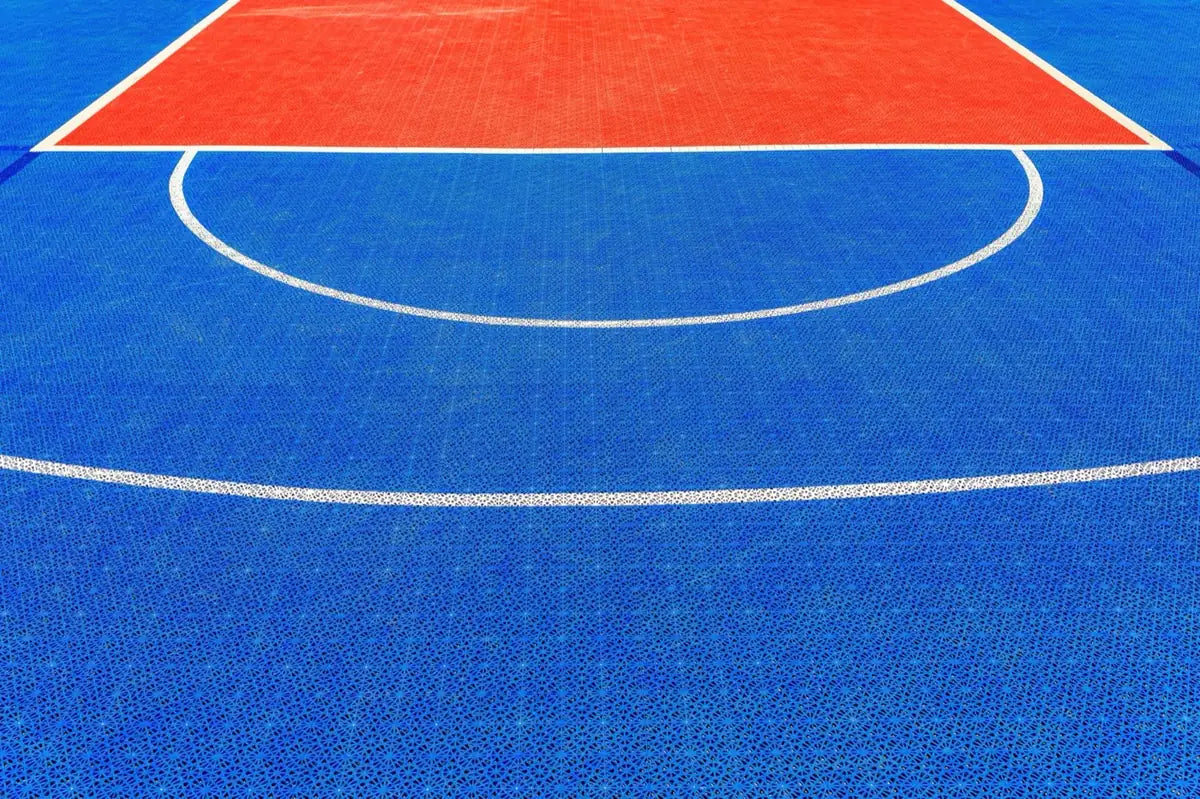

• Society multi-use: PP interlocking tile (volleyball + badminton overlay) — installs in 2 days, lifts up
• Premium club indoor: FIVB-approved vinyl roll (Gerflor or equivalent) — tournament-rated, lower cost than PU
• Beach volleyball: Imported quartz sand 40 cm deep, FIVB grading 0.5-1.5 mm — coastal cities, resorts

Cost guide

Outdoor volleyball court (24 m x 15 m = 3,875 sqft including run-off):

• Acrylic + PCC turnkey: Rs 6 - 7 lakh
• Posts + net + antennae: Rs 25,000 - 40,000
• LED lighting (6 x 200W): Rs 90,000 - 1.4 lakh
• Total turnkey: Rs 7.5 - 9 lakh

Indoor PU full court (surface only): Rs 10 - 14 lakh. Beach volleyball court with sand + frame + net: Rs 4 - 7 lakh.

Why ChampCourts for volleyball

• FIVB-spec dimensions and net systems on every build
• 5-year coating warranty
• Indoor + outdoor expertise — same vendor for school PE court and college tournament hall
• Single quote — surface + posts + nets + lights bundled
• Beach volleyball specialisation for coastal and resort projects

FAQ

What is the cost of a volleyball court in India?

Outdoor acrylic full court turnkey: Rs 7.5 - 9 lakh. Indoor PU: Rs 12 - 16 lakh (surface only, on existing slab). Beach volleyball: Rs 4 - 7 lakh.

Acrylic or PU for volleyball?

Acrylic outdoors (weather-rated, low-maintenance). PU indoors (FIVB-compliant shock absorption, prevents knee/ankle injury from repeated jumping).

How long does volleyball court construction take?

20-30 days for outdoor acrylic. Indoor PU: 14-18 days on existing slab. Beach volleyball with civil pit and drainage: 25-35 days.

What net system do you provide?

FIVB-rated nets (3.2 mm braided, kevlar top tape) with telescoping aluminium or steel posts, floor sockets, antennae, and ratchet tensioner. Included in turnkey quote.

Do you build beach volleyball courts?

Yes — imported FIVB-graded sand (0.5-1.5 mm grain), 40 cm depth, retaining wall, drainage layer, and net set. Best suited to coastal cities and resort properties.

Can a volleyball court be multi-sport?

Yes — same surface can host badminton, pickleball and basketball with overlaid lines. See multi-sport courts.

Volleyball court compliance verification

For FIVB-rated venues, we provide handover documentation:

• Dimensional survey report (court size, net height, antennae placement)
• Surface friction test (BPN reading at 5 points across court)
• Vertical deformation report for cushioned surfaces (FIVB Level 1 if applicable)
• Lighting lux survey (uniform reading at floor level + ball-flight zone)
• Material certificates (BWF/FIVB-approved acrylic or PU formulation)
• Drainage verification (no standing water within 10 minutes of test water application)

Volleyball training accessories

For schools and academies, beyond the court itself plan for:

• Practice balls (multiple): Rs 800-2,500 each, recommend 10-15 per court
• Spike training devices (spike trainer / blocker): Rs 12-35K
• Ball cart / storage: Rs 8-22K
• Antennae spares (UV degrades): Rs 1,500-3,500 per set
• Tape measure + line marking touch-up kit for re-line painting
• First-aid kit (volleyball has frequent finger/ankle injuries): Rs 5-15K

Volleyball court colour and design

FIVB indoor competition halls use specific colour schemes for broadcast clarity:

• Inside lines (court): Light blue or terracotta (warm colour, visible on broadcast)
• Outside zone (free zone): Light grey or dark blue (cool colour, contrast vs inside)
• Lines: White, 5 cm wide
• Substitution zone: Yellow or red painted strip near scorer’s table

For schools and societies, simpler one-tone court (royal blue or green) works well. Custom brand colours and crests are also supported.

Indoor vs outdoor volleyball — pros and cons

• Outdoor pros: Lower capex, natural ventilation, daylight; good for schools and societies
• Outdoor cons: Wind affects ball path; sun glare in evening matches; weather pauses play
• Indoor pros: Tournament-grade FIVB conditions; year-round play; broadcast-ready; controlled lighting
• Indoor cons: 3-5x capex; HVAC ongoing cost; building permission complexity

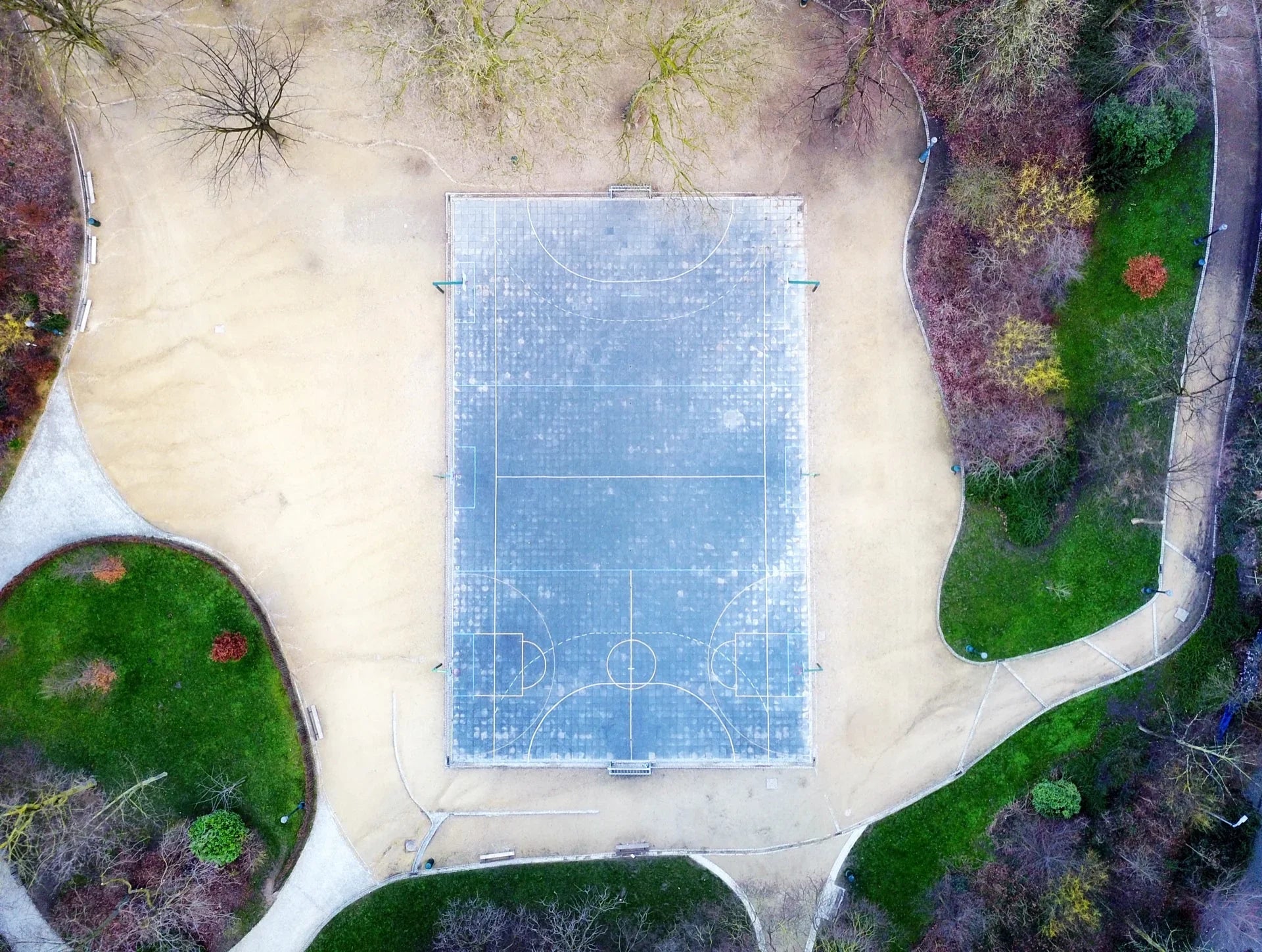

Volleyball & mixed-sport halls — efficient use of space

A 24 m x 15 m space can host 1 FIVB volleyball court OR (with line overlay) 2 badminton courts + 1 pickleball. Many institutional clients build a dedicated volleyball hall and add overlay lines:

• Primary: 1 FIVB volleyball (white lines, 18 x 9 m)
• Secondary: 2 badminton courts cross-orientation (yellow lines)
• Tertiary: 1 pickleball court (blue lines, 13.4 x 6.1 m)
• Switching kit cost: Rs 60,000-1.2 lakh for movable posts, portable nets, storage

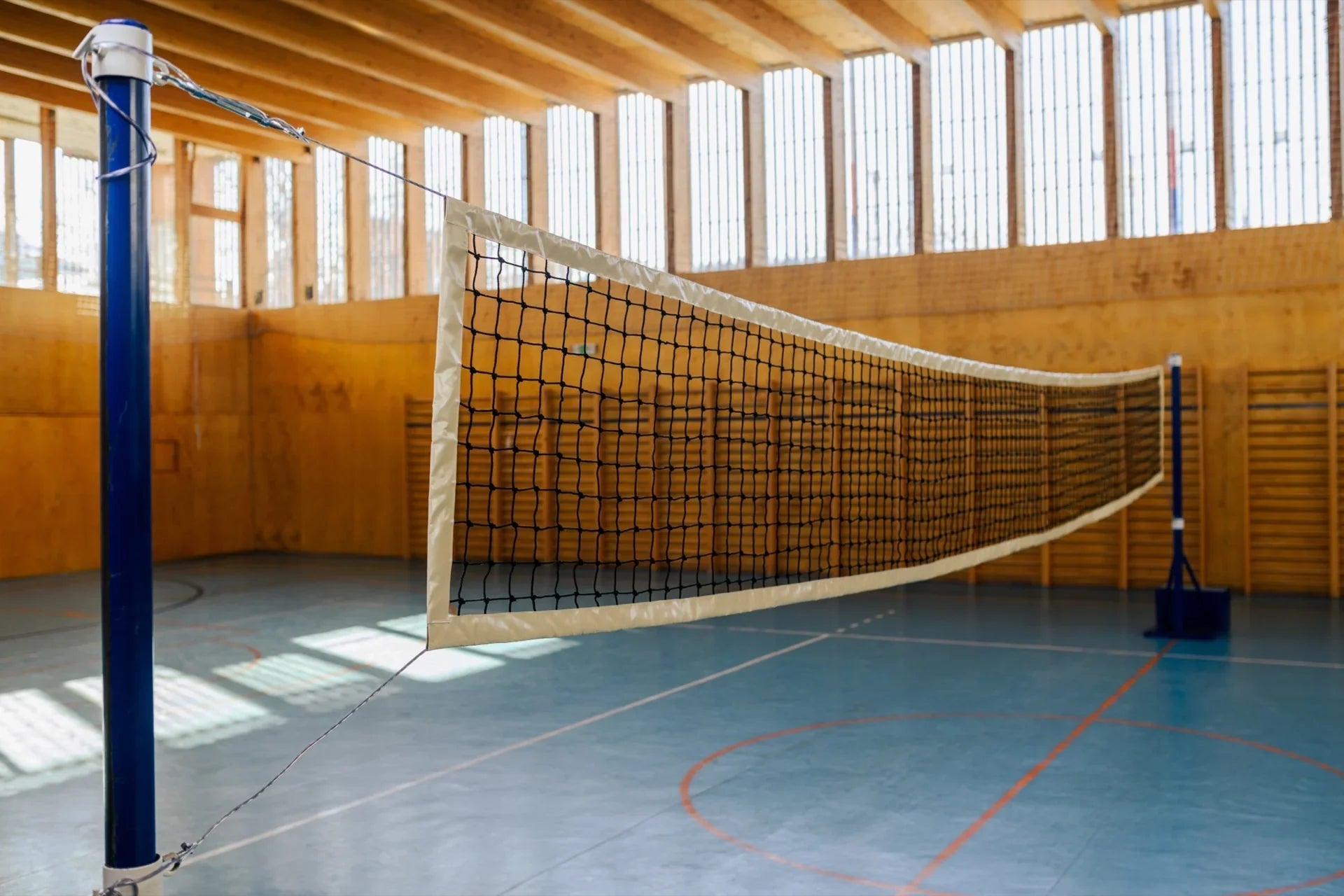

Volleyball net post systems

• Aluminium telescoping (FIVB-rated): Adjustable men/women heights, ratchet tensioner, machined base plate. Rs 22,000-42,000 per pair.
• Steel posts (school/permanent): Powder-coated, dual-height pre-set, robust. Rs 12,000-24,000 per pair.
• Floor sockets: Brass / SS cast into PCC with flush chrome caps. Rs 3,200-5,500 per pair installed.
• FIVB-rated nets: 1 m x 9.5-10 m, kevlar top tape, mildew-resistant cord. Rs 3,500-12,000 per net.
• Antennae set: 1.80 m fibreglass with sleeves on net. Rs 1,800-4,500 per set.
• Referee stand: Folding aluminium with elevated platform. Rs 18,000-35,000.

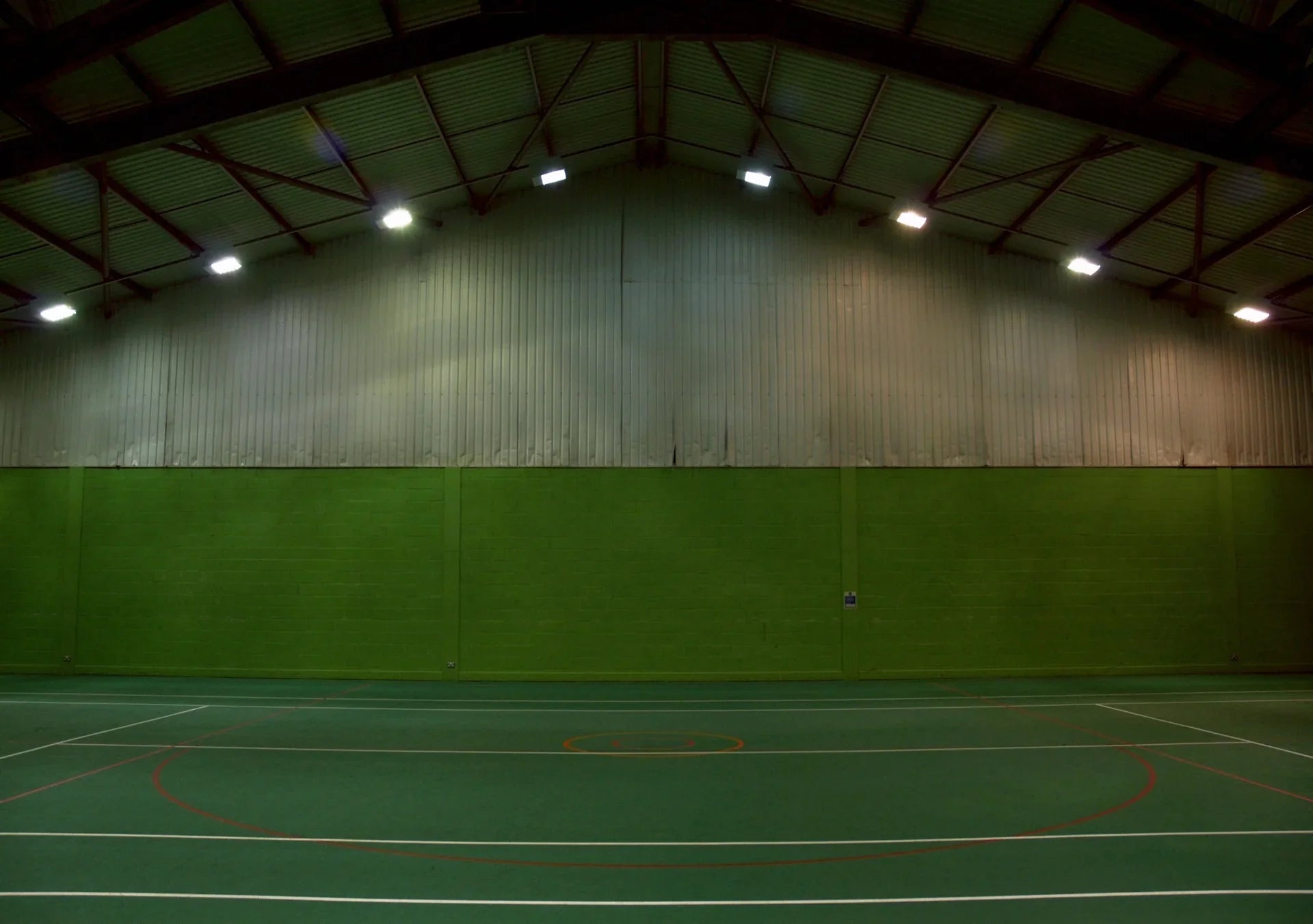

Indoor volleyball hall — institutional spec

A full-spec indoor volleyball hall hosts a single 18 m x 9 m court with 3 m free zone all sides (24 m x 15 m total) plus 7 m ceiling minimum. For competition / FIVB venues, the ceiling clearance rises to 12.5 m and the hall expands to 36 m x 21 m to accommodate warm-up zones, referee stands, and spectator seating.

• Recreational hall (24 x 15 x 7 m): PEB structure + PU surface + lights = Rs 35-55 lakh
• Club competition hall (30 x 18 x 9 m): Rs 55-85 lakh
• FIVB-spec hall (36 x 21 x 12.5 m): Rs 95 lakh - 1.6 crore

Beach volleyball — coastal & resort specialisation

Beach volleyball is a specialised build using imported FIVB-graded sand. Standard court: 16 m x 8 m (smaller than indoor 18 x 9 m), free zone 5-6 m all sides. Sand depth: 40 cm minimum. Sand grading: 0.5-1.5 mm grain, washed and chemically inert.

• Civil pit: Retaining wall 60 cm height, filter drainage layer, vapour barrier
• Sand fill: 40 cm imported FIVB-graded silica sand
• Posts: Heavy-duty galvanised steel with deep concrete footings (sand pulls posts under stress)
• Net: Outdoor-rated polyester, 1 m x 9.5 m
• Lighting: 4-6 x 200W LED for night play
• Cost: Rs 4-8 lakh per court depending on civil complexity

Best applications: resort properties in Goa, coastal Maharashtra, Kerala, Pondicherry; private beach clubs; sports academies with diversity goals.

Case study — Visakhapatnam school outdoor volleyball court

A coastal Vizag school commissioned an outdoor volleyball court in late 2025. The challenge: high humidity, salt air, and frequent monsoon. Standard acrylic with the right coating spec handles all three.

• Civil: M25 PCC with extra rebar for salt-air corrosion resistance, 2.5% drainage gradient (steeper than inland to clear heavy monsoon)
• Surface: 8-layer acrylic with anti-fungal additive in top-seal, blue + green colours
• Posts: Hot-dip galvanised steel (not aluminium — salt corrosion risk)
• Lighting: 6 x 200W marine-grade IP66 LED floods
• Total cost: Rs 8.4 lakh turnkey
• Outcome: 14 months in, zero coating degradation despite proximity to coast; school now hosts inter-district volleyball

Volleyball court maintenance

• Daily: Sweep dust and debris from court; check net tension
• Weekly: Damp mop (vinyl/PU); jet-wash outdoor acrylic monthly
• Quarterly: Inspect line paint, post anchors, net headcord
• Annual: Re-tension net, replace antennae if UV-damaged, check post sockets
• Year 4-5: Top-seal re-coat acrylic; net replacement
• Beach courts: Rake sand weekly, top-up annually, remove debris/leaves daily

Volleyball-specific lighting

Volleyball is unique because the ball spends 60-70% of play time above the players' heads. Lighting must illuminate the airspace, not just the floor:

• Mounting height: 8-10 m above court for indoor; avoid direct overhead positions
• Side-mounted preferred with downward + horizontal beam mix
• Lux level: 500 training, 1,500 FIVB competition
• Beach courts: Tall 8 m or 10 m poles at court corners with downlit floods
