Volleyball Courts for a Beach Town Academy

Aerial view of the volleyball academy and completed court, Goa
Two weeks after handover. The Blue and Golden Yellow court catches the afternoon light in a way the sand never did — visible from the approach road, a kilometre away.

Eleven years. That is how long the head coach had trained competitive volleyball players on beach sand, with no hard court to his name. He was very good at it — sand builds exceptional leg power, aerial sense, and ball control that no gym programme can replicate. But sand and hard court are different games. His players would arrive at state competitions and their footwork was slightly out of phase with the surface. The transition cost them games. When he finally called ChampCourts, the first thing he said was: "I needed this ten years ago."

3,800
Square Feet
14
Days to Handover
PP Tiles
Blue + Golden Yellow
🌴
Coastal
Salt-Air Resistant
THE COASTAL CHALLENGE

The academy compound sits close enough to the coast that salt air is a constant. In Goa's coastal zone, that is not a minor condition — it is a materials selection criterion. Over eleven years, the coach had watched concrete crack through the cooler months, paint peel off surfaces within a season, and mild steel hardware rust through a single monsoon. Every surface improvement the academy had tried had been undone by the environment within a few years.

We did a site assessment and identified three risk factors the surface system had to address before anything else.

Salt-Air Corrosion. Any exposed steel in the installation — net post anchors, drainage hardware, perimeter fixings — had to be stainless steel or hot-dip galvanized. Standard mild steel, which works perfectly on inland courts, would not survive a single monsoon here.

Drainage Under Monsoon Load. The Goa coast gets around 2,500mm of rainfall annually, most of it between June and September. A surface that pools water is not just unplayable — on coastal sandy sub-soil, standing water accelerates substrate erosion. The court had to shed rainfall within minutes, not hours.

Adhesive-Free System in Coastal Humidity. Pre-monsoon Goa carries enough atmospheric moisture that adhesive-dependent surface systems need constant humidity monitoring during installation. PP interlocking tiles use a snap-fit mechanical connection with no adhesives at the field joints — completely insensitive to ambient humidity. That removed a significant installation risk from the programme.

PP tile underside ribbing for drainage

PP tiles addressed all three. Polypropylene does not corrode in salt-air environments — it is chemically inert. The snap-fit joints create inherent permeability across the court, so rainfall drains through rather than pooling on top. And the moulded ribbing on the tile underside creates a 4mm air gap between tile and substrate that speeds drainage and prevents moisture from being trapped against the concrete base. The thing is, this system is essentially designed for the conditions that destroyed every previous surface at this academy.

PP Interlocking Tiles FIVB Outdoor Dimensions Blue + Golden Yellow Stainless Steel Net Posts 1:100 Drainage Cross-Fall 15+ Yr Lifespan 5-Yr Warranty Salt-Air Resistant
THE COLOUR DECISION

The coach picked his colours within minutes of seeing the palette. Blue for the main court field and run-off — the colour of the coastal water he trains beside every day, a natural reference for his players. Golden Yellow for the perimeter border, and critically, as the colour of the attack-line tiles. This was not just a design choice. The coach wanted his players to have an instant visual reference for court position without needing to look down at line markings. A tile-colour change at the attack line — Blue to Gold — gives exactly that. It is a training aid built directly into the surface specification.

THE TIMELINE
Days 1–4
Sub-Base and PCC Foundation
GSB 70mm sub-base compacted to 95% MDD. M20 PCC poured in two stages, graded to 1:100 drainage cross-fall. Two perimeter drainage channels formed in coordination with the academy's civil team. Curing compound applied — standard practice on coastal sites to prevent rapid surface moisture loss from sea breeze.
Days 5–7
Curing and Net Post Anchor Setting
48-hour cure period with water curing maintained. Stainless steel net post anchor sleeves cast into the wet concrete at FIVB specification positions — two sets, for singles and doubles net height options. Sleeves finished flush with the slab surface to eliminate trip hazards.
Days 8–12
PP Tile Installation
Blue field tiles laid from court centre outward. Golden Yellow border and attack-line tiles integrated into the lay pattern. Full FIVB outer dimensions achieved including run-off zones. Kerb installation around the complete perimeter. The Blue-to-Gold boundary at the attack line was verified against the line marking spec before the run-off tiles were laid.
Days 13–14
Net Posts, Drainage Test, Handover
Stainless steel net posts installed and tensioned. Drainage test: 50 litres poured at centre court, surface cleared in under 40 seconds. Final inspection passed. Handover completed Day 14 morning. Training session started Day 14 afternoon — the first ball over the net at the academy's first ever hard court.
PCC base being poured and graded at the Goa academy
PCC base with drainage fall — Day 2
Blue tile installation with Golden Yellow border staged, Day 9
Blue field tiles, Day 9

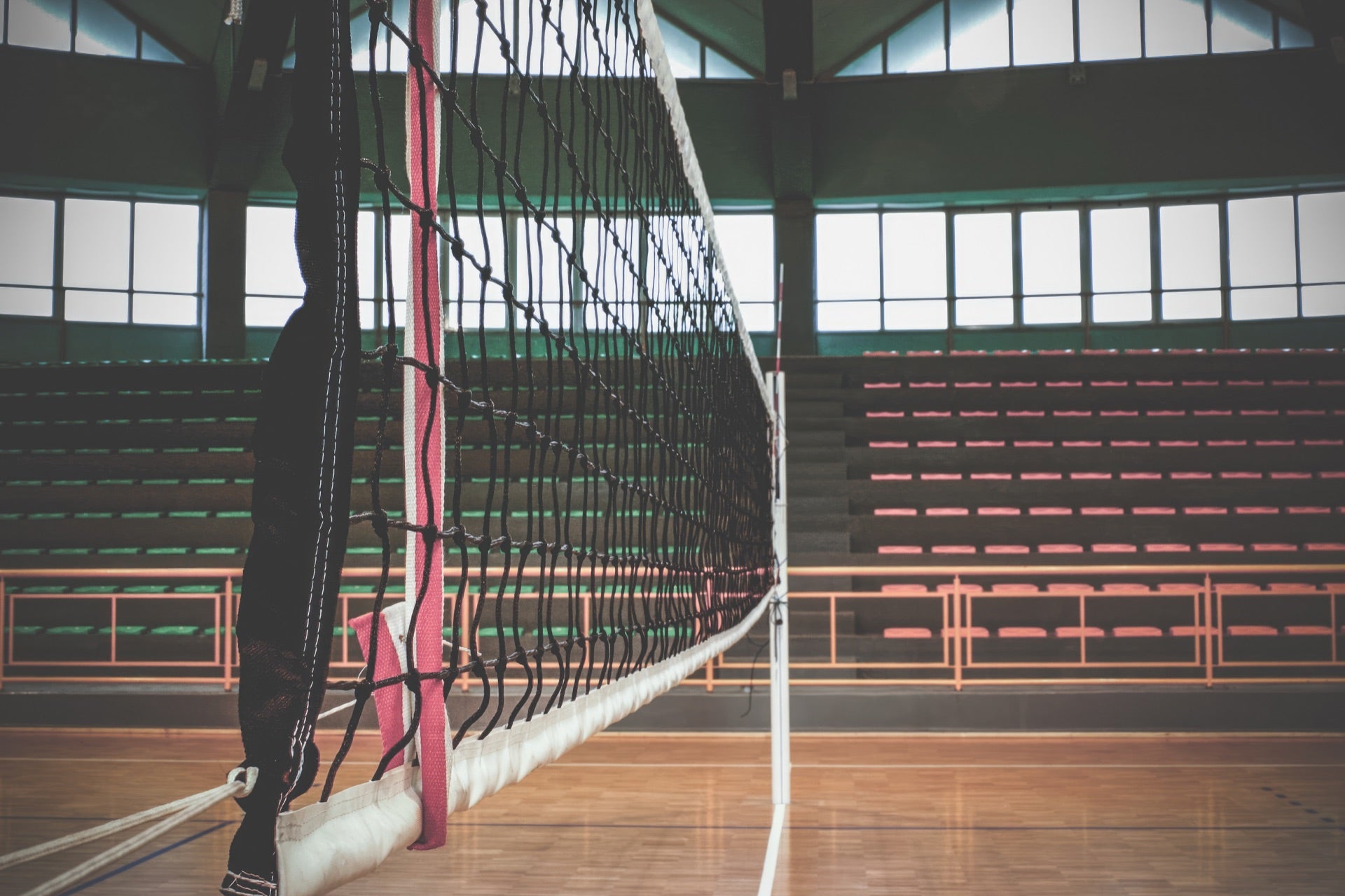

Completed volleyball court with first training session, Goa
First training session — Day 14
Want to see what this would cost for your space?
Get Estimate Call Now WhatsApp
THE RESULT
14
Days, Start to Handover
3
State Junior Selections
Zero
Surface Failures in 8 Months
1
New Training Programme Launched

Eight months after handover, the coach called with an update he wanted us to hear directly. Three of his junior players had been selected for the state junior volleyball team. He gave a lot of the credit to the hard-court training the new surface had made possible. "On sand you learn the game," he said. "On a hard court you learn to play it at speed." For the first time in eleven years at the academy, he had that dimension of coaching available to him.

The Beach-to-Court programme — a structured training pathway combining sand and hard-surface sessions — launched three months after the court opened. Six new students from neighbouring coastal towns now make the journey specifically for dual-surface training. The stainless steel net posts show no corrosion. The tile surface needs only a quarterly wash-down. The drainage channels clear monsoon rainfall from the surface within minutes.

In the late afternoon, when the coastal light comes in low from the west, the Golden Yellow border tiles catch it differently from the Blue field. The court seems to glow from a kilometre out on the approach road. The coach has started scheduling his advanced sessions for that hour. He says the players play better when the court looks like that. Honestly, we believe him.

"We had tried everything on this ground over the years. Concrete cracked, paint peeled, metal posts rusted in one monsoon. ChampCourts gave us something that actually understood the coast. Eight months in and it looks exactly like day one."

— Academy Head Coach
Project Location
Goa
Sport: Volleyball (FIVB) | Surface: PP Interlocking Tiles | Client: Sports Academy
Client institution name has been kept confidential. Court dimensions, specifications, and installation timeline are accurate. Player selection data and programme outcomes were reported by the academy. Drainage performance figures were measured at handover. Certain tile colours are subject to availability. All images and videos on this page are for representation purposes only and may not depict actual project sites.
